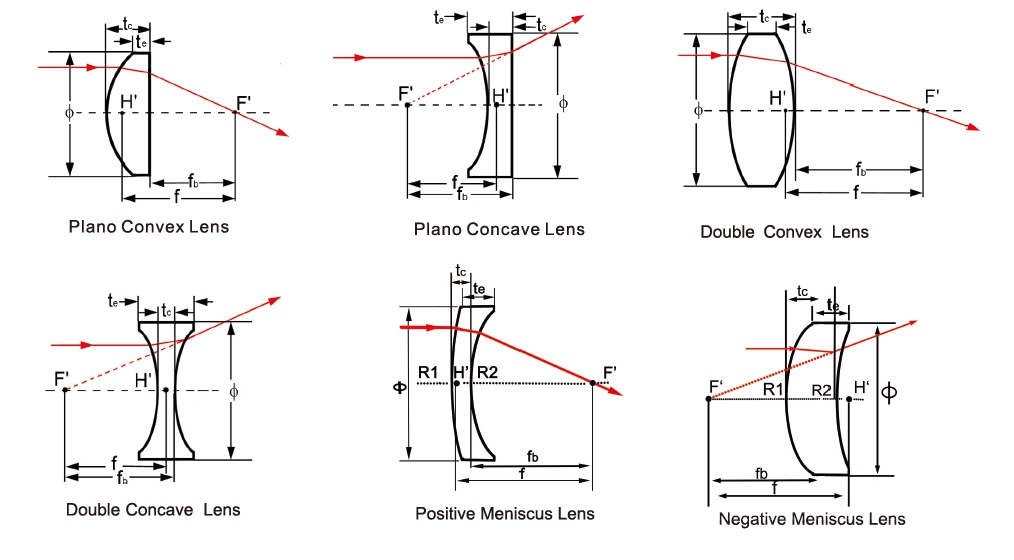

球面透鏡
| 屬性 | 規范參數 |
| 材質 | BK7, K9, 熔融石英, SF10, 硅, 氟化鈣, 藍寶石等 |
| 標準直徑 (Фmm) | 10.0, 12.7, 15.0, 20.0, 25.4, 30.0, 50.8, etc. |
| 直徑公差 (mm) | +0.0/-0.2 (General), +0.0/-0.02 (High Precision) |
| 近軸焦距公差 (mm) | ±2% |
| 光軸性 | <3 arc min |
| 通光孔徑 | >80% (Small Size), >95% (Large Size) |
| 面型 (per [email protected]) | <1.5λ, (General), <λ/4 (High Precision) |
| IRR ( @632.8nm) | <λ/4 (General), <λ/10 (High Precision) |
| 表面質量 | 60/40 (General), 10/5 (High Precision) |
| 倒角(face width x 450) | <0.25mm |
| 鍍膜 | uncoated, AR, HR, PR Coating, etc. |

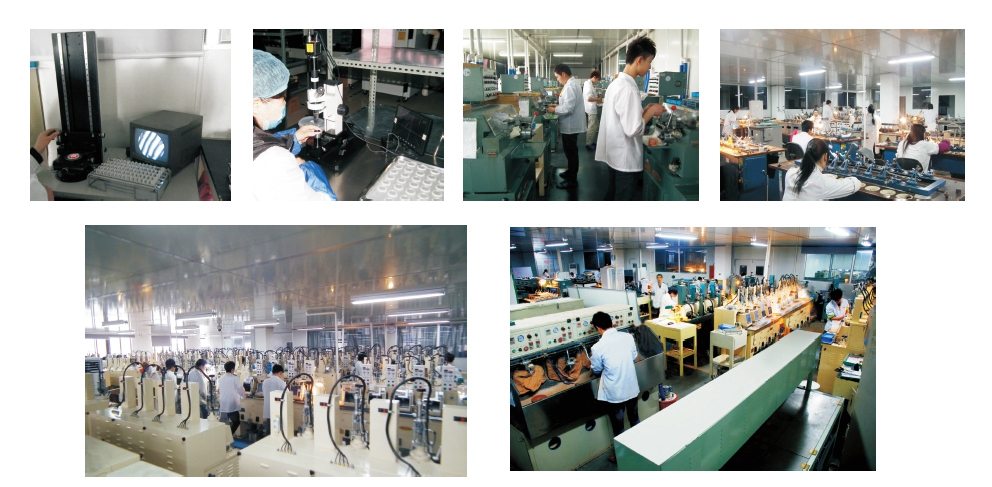

Mass Production: 1 Million Pieces Per Month
